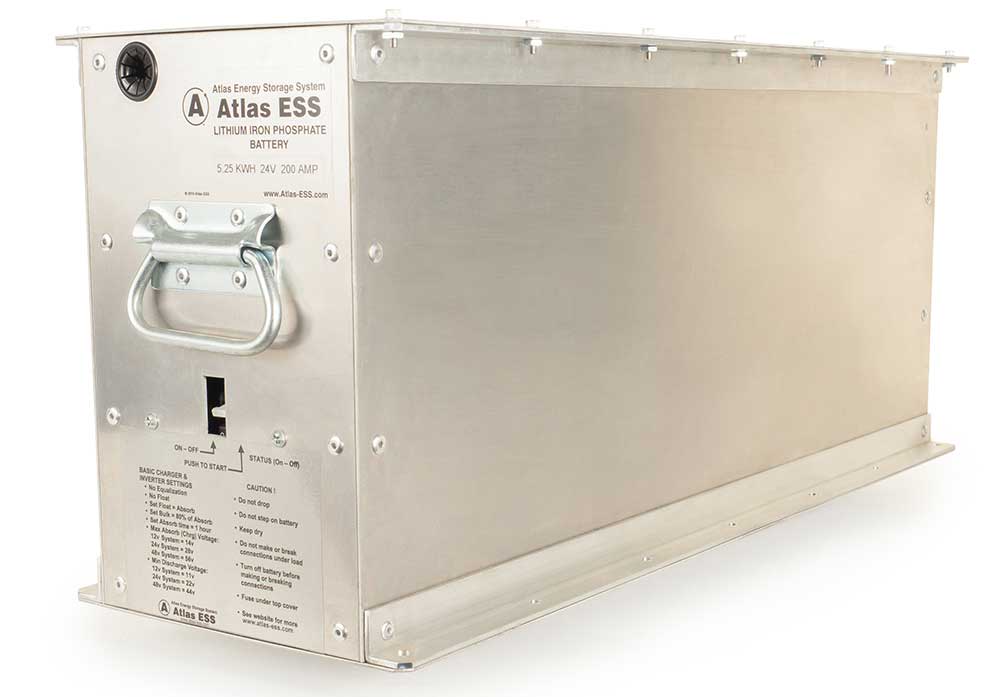

Atlas Energy Storage Systems Universal Rechargeable Lithium Iron Phosphate Battery
-
Powerful, general purpose, maintenance free, rechargeable lithium iron phosphate battery for residential, commercial, vehicle and marine use.
-
BMS with cell balancing.
-
Modular design.
-
Rack mount or stack batteries.
-
Series and parallel arrangements allowed.
-
Use with all inverters and charge controllers.
Atlas ESS Universal Battery Specification
Capacity:5.25 kWh. 5,250 watt hours. For higher capacity use multiple batteries
Warranty: 15 Year
Voltage: 12v, 24v, 48v. Up to 600vdc with multiple batteries connected together
Power: 10,240 watts continuous with 2/0 AWG wire and 200A fuse (51.2v x 200a) 12,800 watts continuous with 4/0 AWG wire and 250A fuse (51.2v x 250a) 17,920 watts max with solid bus bar and 350A fuse (51.2v x 350a)
Discharge Current: 200A and 100A continuous
Charge Current: 100A and 60A continuous
Wire Size: 2/0 AWG Fuse: 200A standard. Other fuses available
Depth of Discharge (DOD): 100%. Typically set to 80% for maximum life Efficiency: 98%
Operating Temperature: 32 F to 113 F (0 C to 45 C)
Enclosure: Aluminium NEMA 1 in-doors. Floor mount. Rack mount and stackable
Weight: 114 pounds (54 kg) and 135 pounds (61 kg)
Dimensions: 27.25 in x 9.25 in x 12 in high 692 mm x 235 mm x 305 mm high and 24.75 in x 13.5” x 9.5 in high 629 mm x 343 mm x 241 mm high
Battery Management System (BMS): Atlas ESS proprietary design, listed to UL 508 by a NRTL Warranty: 15 years, 10,000 cycles. Pro-rated. Transferrable. Best in industry
